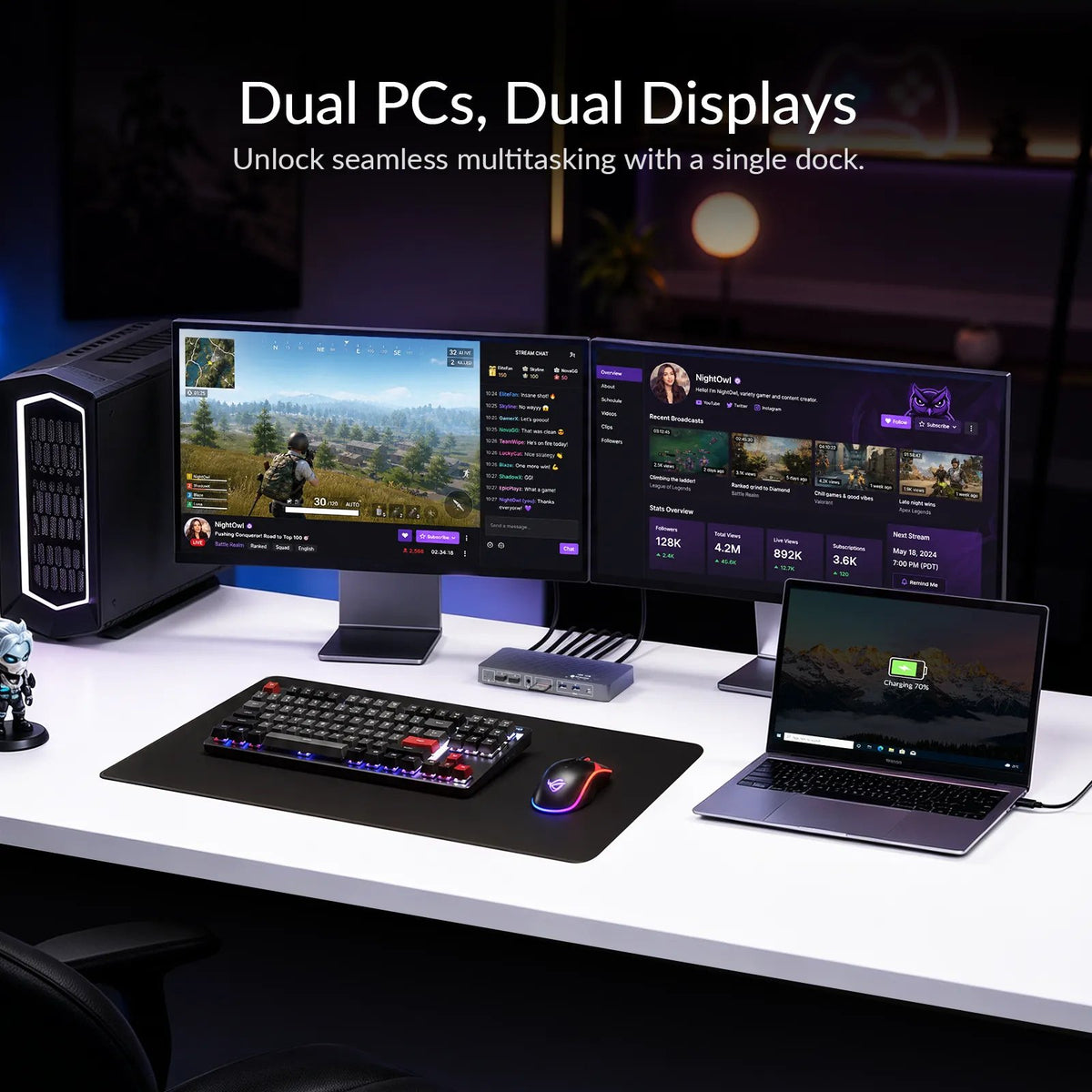

Bring your work laptop and gaming desktop together in a dual-monitor setup.
Enjoy up to 4K@165Hz or 1080P@480Hz/360Hz on your PC, then switch both displays and all connected USB devices with one click.

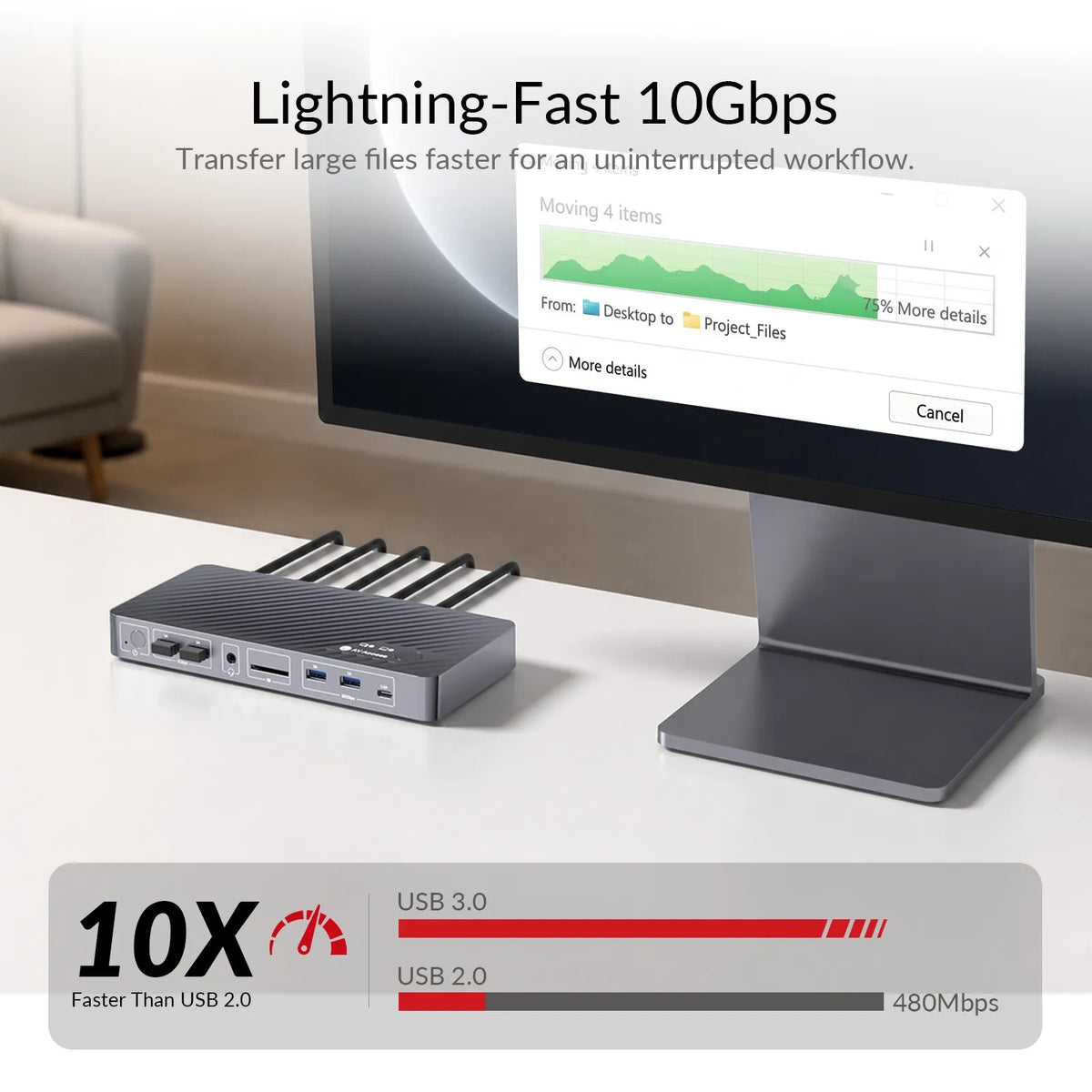

For both computers 2.5Gb Ethernet, 10Gbps USB and up to 100W charging without additional charging power supply keep your workflow fast and confusing.
Link to manufacturer AV Access: AV Access Support Centre
● Connect 1 laptop and 1 desktop and easily switch between them with a button.
● Dual monitor outputs: Supports dual displays for both sources – perfect for multitasking (MacOS does not support advanced dual screens).
● Dual 8K@60Hz outputs: Supports two 8K@60Hz monitors simultaneously for stung sharp images and ultimate productivity.
● rates Liquid images on the gaming PC page with up to 4K@165Hz/144Hz, 1440P@165Hz or 1080p@240Hz/165Hz on both sources.
● With very good cables, up to 8K60Hz and 5K 5120x1440 with 100Hz (120 Hz tested but not guaranteed), 4K 3840x2160 to 165Hz, 1080p to 480Hz/380Hz on the gaming PC side of the KVM switch are supported.
● The iDock-B12 supports FreeSync and G-SYNC on the DP connection.
● Notebook port: Only a (supplied) USB-C 3.2 Gen.2 cable (graphics-capable) or higher.
Note: MacOS doesn’t support USB-C MST, so external monitors will show duplicate content.
● Note on the USB-C notebook input: The iDock B12 supports up to 4K@60Hz to each monitor when two monitors are connected. 4K@120Hz or 8K@30Hz are only available via the notebook input if only one monitor is connected.

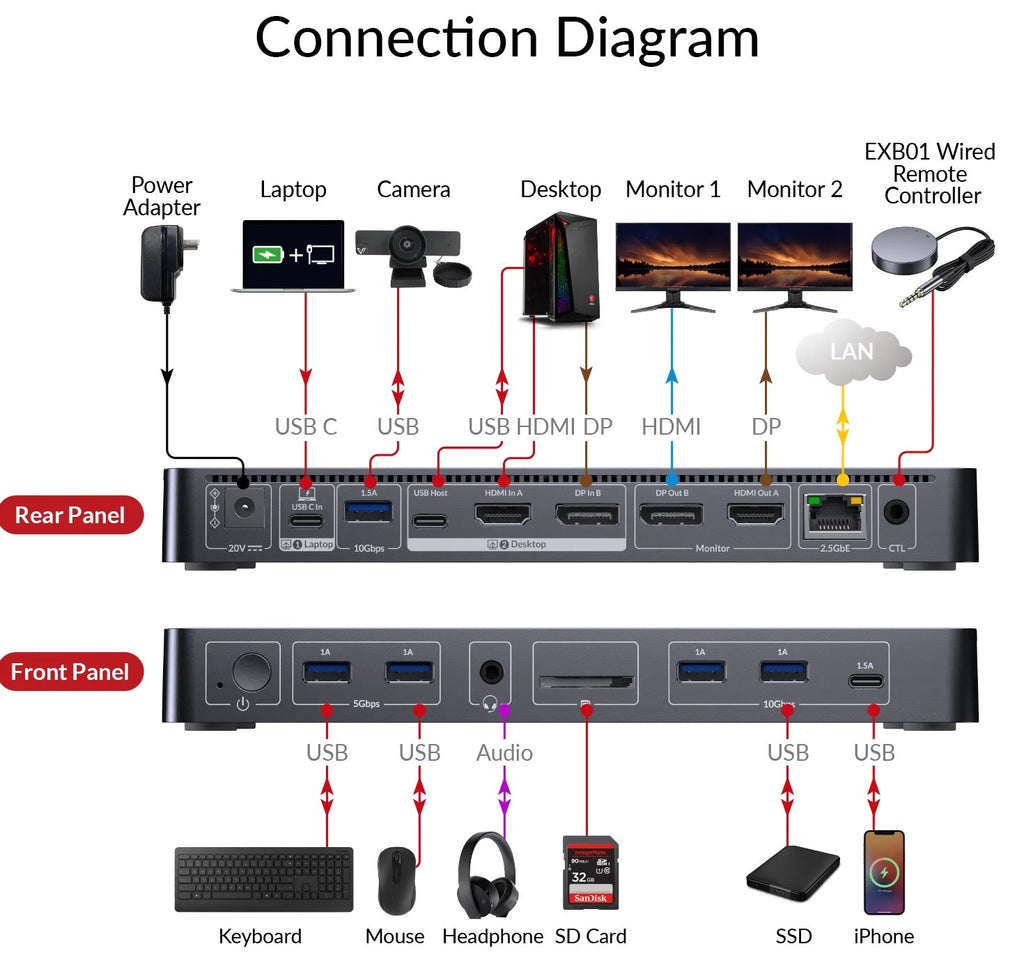

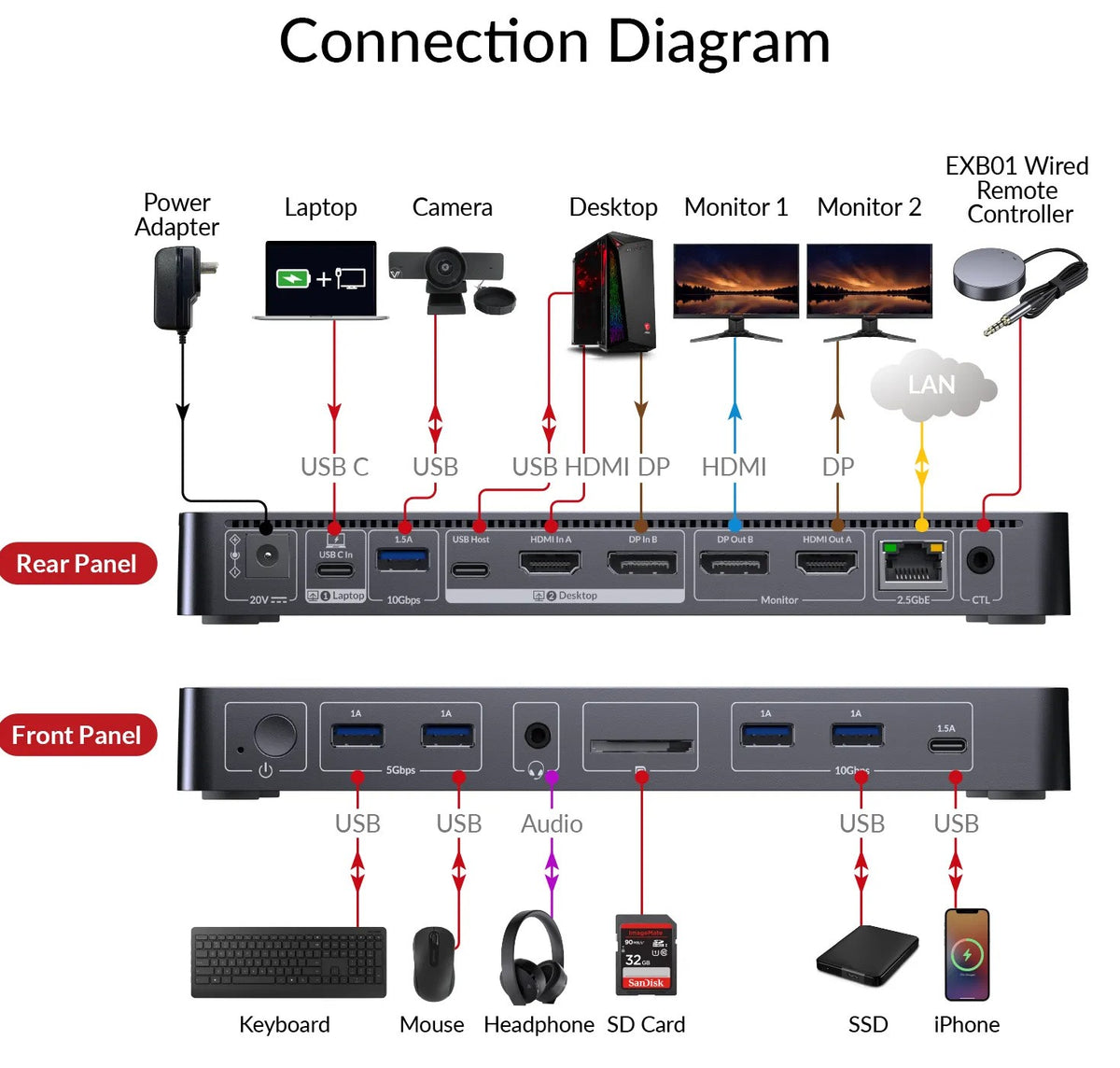

● PC port: The PC will be connected to the KVM switch via (cable included) 1x DP (DisplayPort), 1x HDMI and 1x USB (type-C on the switch to type-A to the PC).
If the PC has only 2x DP, you can only adapt to the HDMI to the KVM switch.
● Monitor connections: A monitor must be closed via DP and a monitor via HDMI.

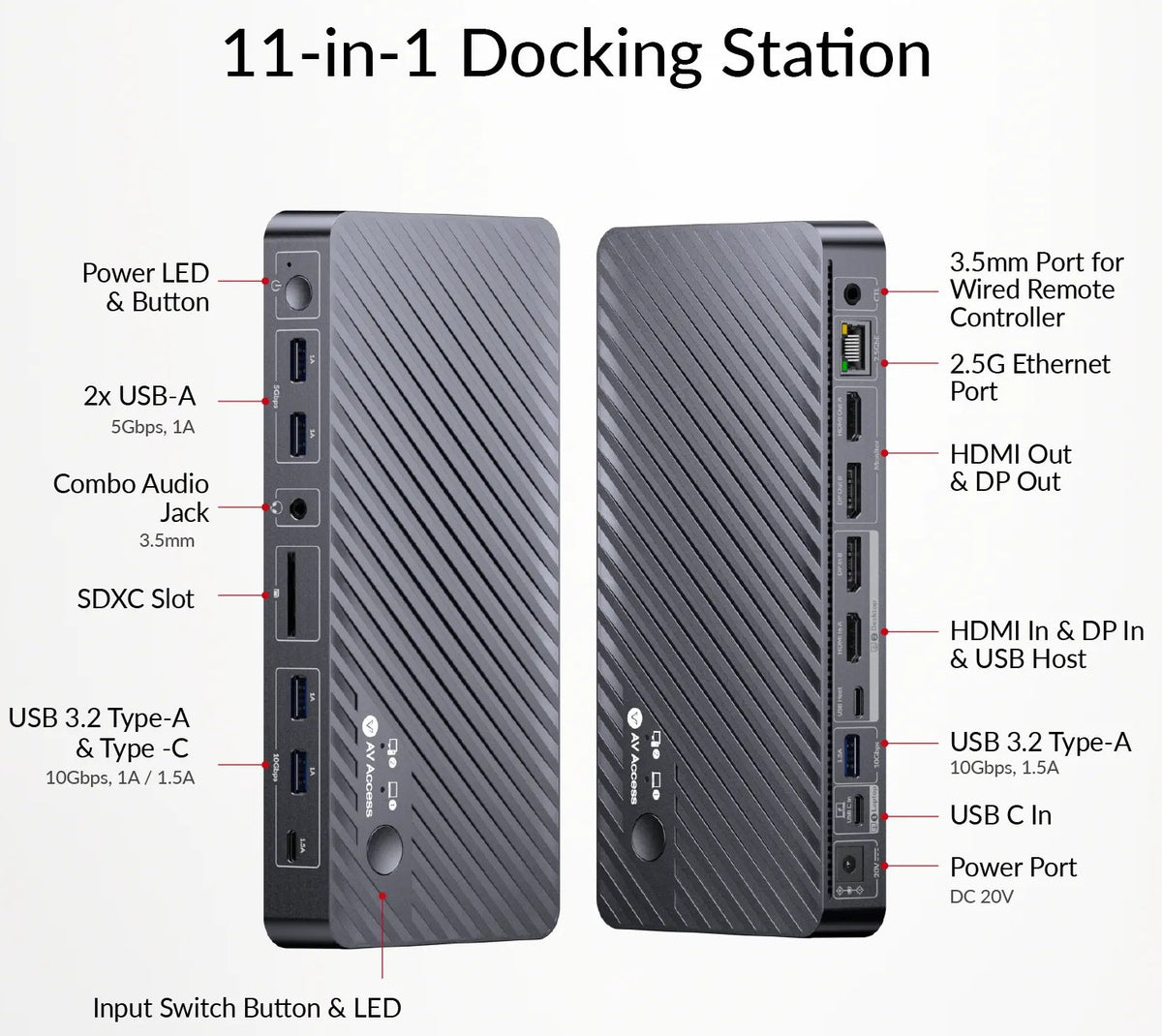

● 11-in-1 docking station: Expand your setup with HDMI, DP, USB-C/A, LAN, SDXC card reader, audio jack and more.

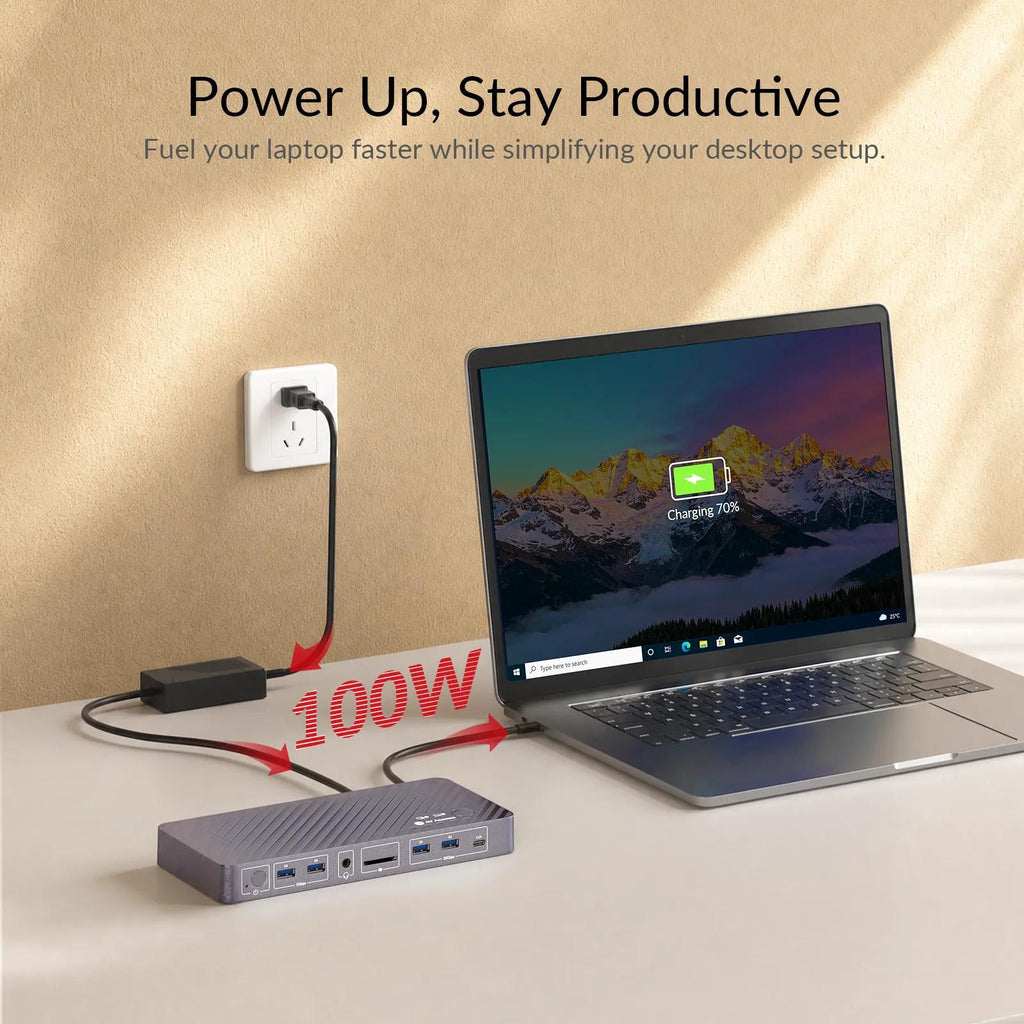

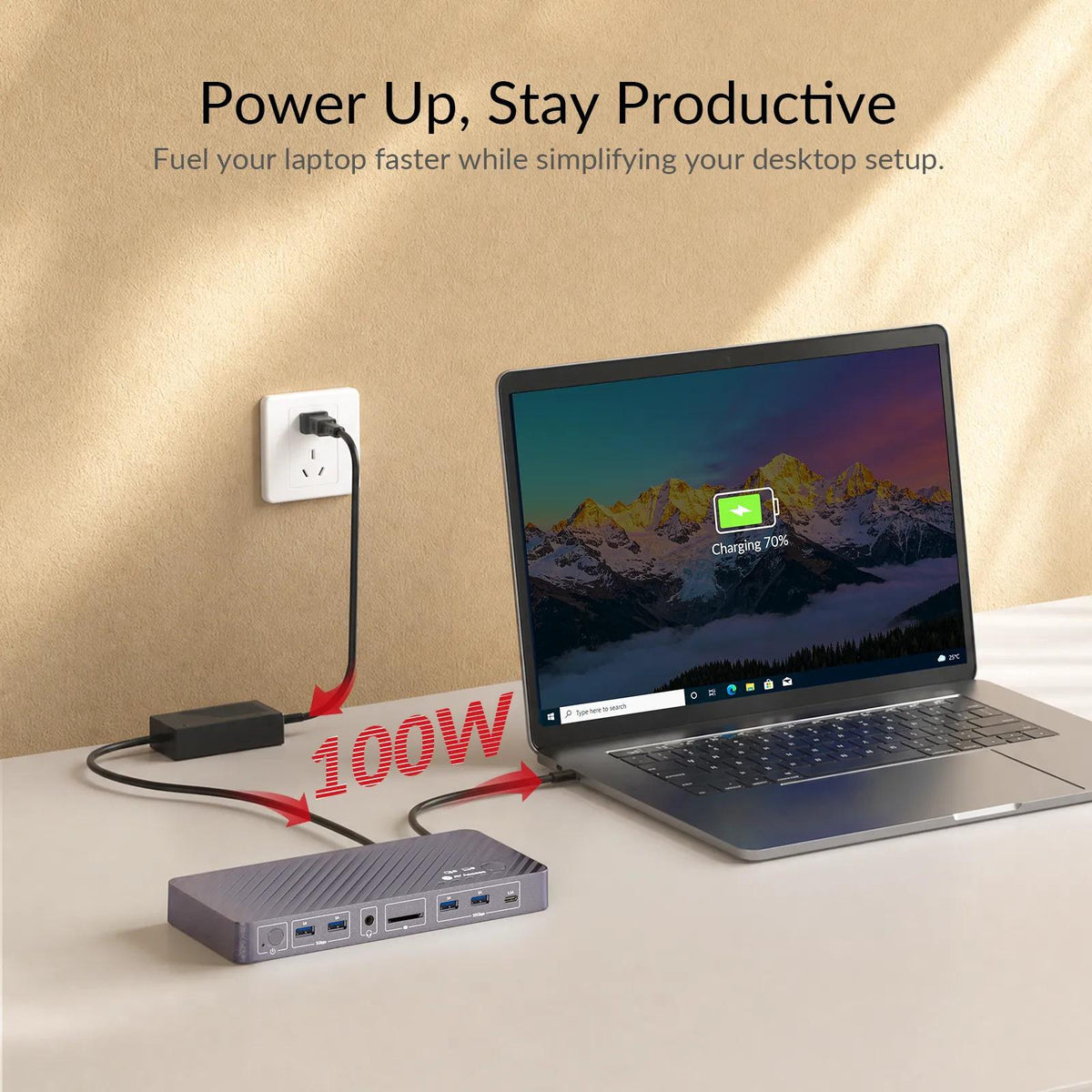

● Charge at full speed and 100 W: A USB-C cable does everything – two 4K videos, lightning fast data, wired Internet and up to 100 W of laptop charging.

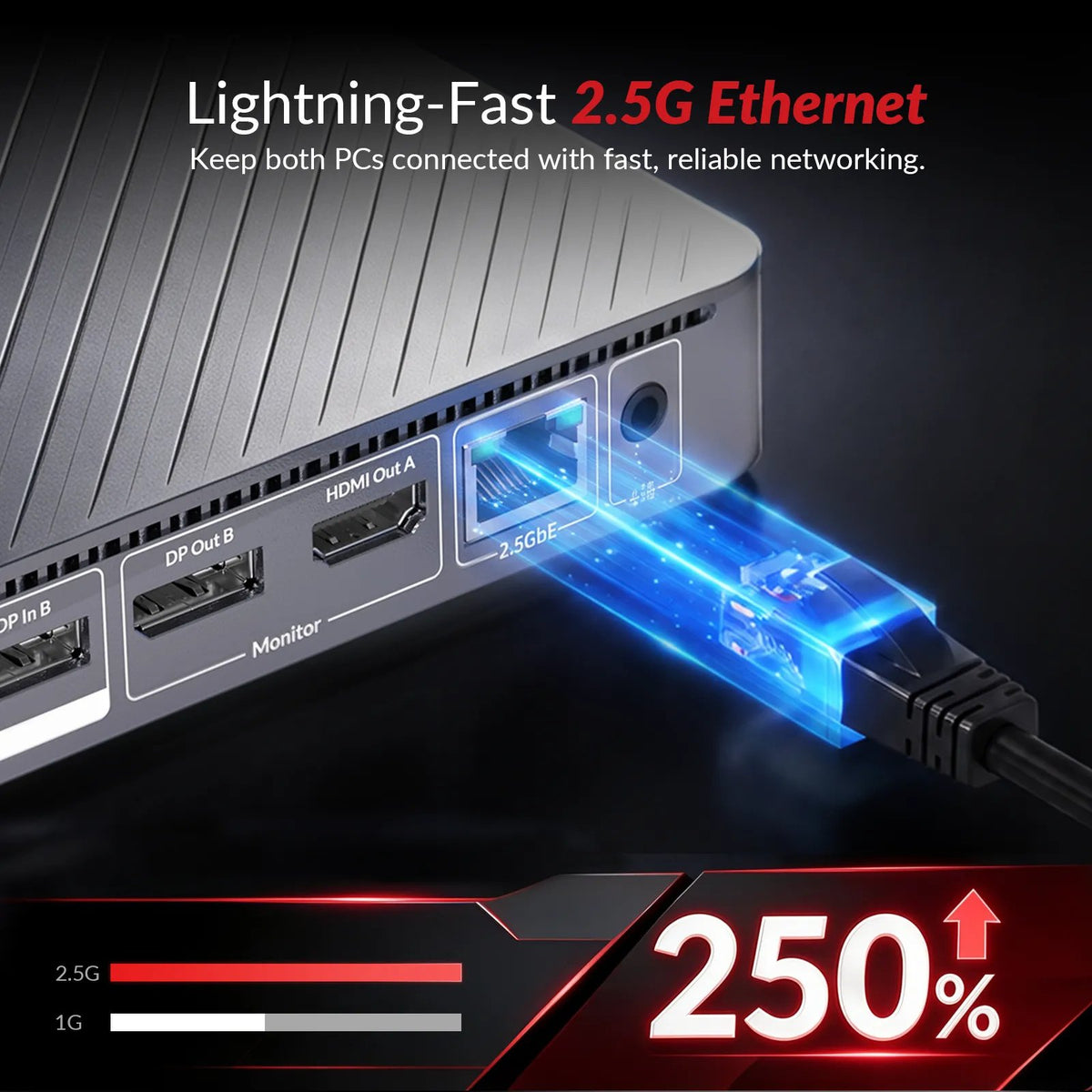

● Stable Internet connection for both PCs: Enjoy fast, stable and simultaneous network access with up to 2.5 Gb for your desktop and laptop. No matter, on which computer you just switched.

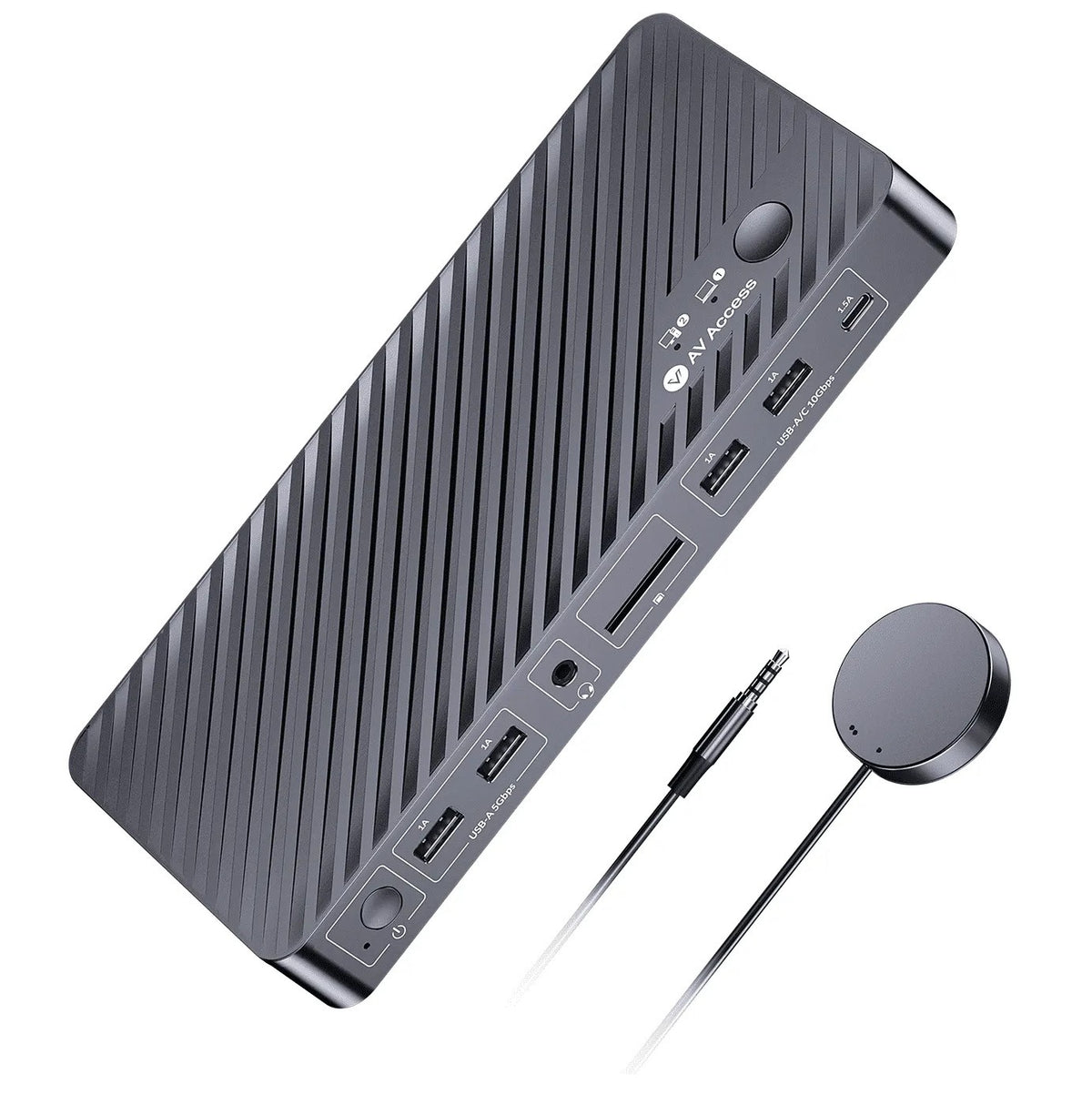

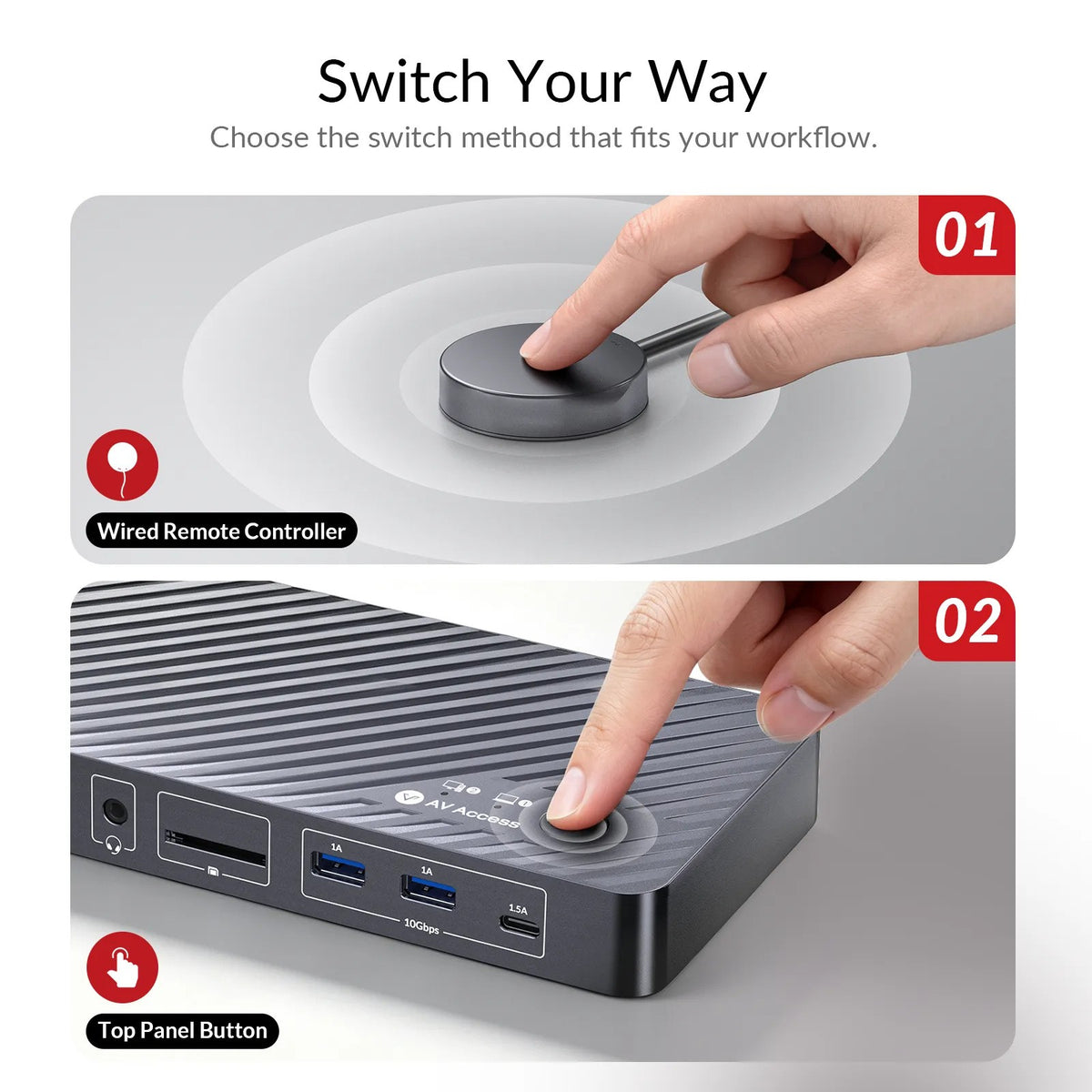

● Simple switching methods: Switching the sources via the button on the top or the EXB01 remote control (included).
